Siemens NX Point Cloud Data Integration — No POD Files, No Bottlenecks
Stream as-built data directly into Siemens Designcenter NX, centralize all reality capture sources in one platform, and enable a progressive digital twin where decisions start before CAD is complete.
Design
from reality capture
No Lag
point cloud current
Faster
HD visualization current
The Siemens NX Plugin — Three Ways to Work from Real As-Built Data
Stream Point Cloud Data Directly into Siemens NX

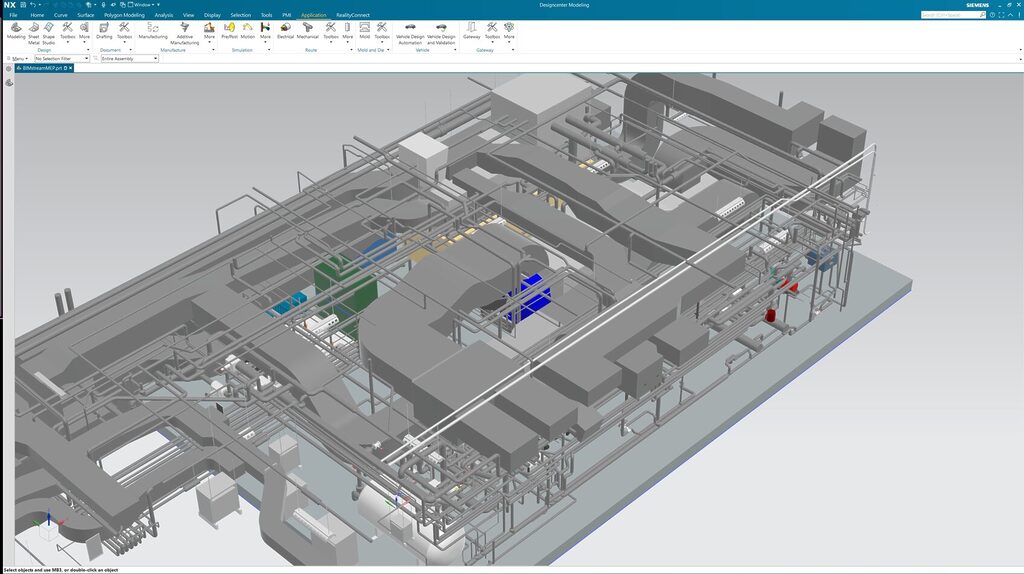

Import as-built reality capture data into Siemens DesignCenter NX as optimized, lightweight 3D meshes — replacing the traditional POD file workflow entirely.
- Stream precise segmented 3D assets from reality capture directly into your NX design environment, without preprocessing or file conversion.
- Navigate the as-built facility environment inside Siemens NX as if you were physically on site.
- Centralize all reality capture sources on one platform and access them natively within NX.
- Eliminate point cloud bottlenecks — no heavy files, no lag, no waiting for complete datasets to process before design work begins.
Validate Designs & Clearances Against Real As-Built Conditions in NX
Use Siemens NX sectioning and measurement tools to inspect internal components and validate engineering designs against actual facility geometry — not assumptions.
- Perform clearance validation and spatial measurements against real as-built point cloud data inside NX.
- Detect interference and fit issues between new designs and existing equipment before fabrication.
- Use NX sectioning tools to inspect internal spatial relationships within the reality capture environment.
- Make faster, more confident engineering decisions grounded in real-world as-built conditions rather than theoretical models.
Extend Siemens NX with Third-Party As-Built Data via Xcelerator
As a third-party Siemens NX plugin development company, Prevu3D integrates with the Siemens Xcelerator ecosystem to extend DesignCenter NX with reality capture capabilities — no custom development required.
- Connect reality capture data to Siemens NX through a validated third-party plugin compatible with the Xcelerator marketplace.
- Enable associative workflows between as-built reality capture environments and live NX design models.
- Support progressive digital twin development — start engineering decisions before CAD reconstruction is complete.
- Available to NX teams without additional infrastructure or VR-specific hardware requirements.
BUILT FOR YOUR SIEMENS NX WORKFLOW
From 3D Scanned Assets to Omniverse Simulation — For Every Team
From point cloud validation to associative design workflows — see how mechanical engineers, digital manufacturing teams, and NX administrators use the native Siemens NX plugin to work from real as-built conditions without POD files or preprocessing delays.
Mechanical & Product Design Engineers
Import point cloud data and as-built reality capture meshes directly into Siemens NX to design and validate against real facility geometry.
No POD files, no preprocessing — work from actual spatial conditions inside DesignCenter NX from day one
Digital Manufacturing & Industrial Engineering Teams
Validate factory layouts, equipment placements, and spatial clearances inside Siemens NX using real as-built point cloud data.
Detect fit issues and interference at the design stage — before fabrication, installation, or costly physical rework.
Siemens NX Administrators & PLM Teams
Extend DesignCenter NX with third-party reality capture integration through the Siemens Xcelerator ecosystem.
Deploy the native Siemens NX plugin across your engineering teams to connect as-built facility data to live NX models — no custom development, no additional infrastructure.
Siemens Designcenter NX Plugin FAQ
What does the Siemens NX plugin do?
The native Siemens NX plugin streams reality capture point cloud data and as-built 3D meshes directly into Siemens DesignCenter NX — replacing the traditional POD file workflow. Engineers can design, validate clearances, and inspect as-built conditions inside NX without preprocessing delays or heavy file imports.
How does the plugin handle Siemens NX point cloud data?
Point cloud data is processed in Prevu3D into optimized, lightweight 3D meshes and streamed directly into Siemens NX. No POD files, no third-party point cloud software, no manual preprocessing — the plugin handles the full pipeline from reality capture to NX-ready geometry.
Is this a validated Siemens NX plugin development company integration?
Yes. Prevu3D is a third-party Siemens NX plugin development company offering a native integration compatible with the Siemens Xcelerator ecosystem. The plugin extends DesignCenter NX with as-built reality capture capabilities without requiring custom development.
Do I need VR hardware to use the Siemens NX plugin?
No. The plugin streams lightweight as-built meshes directly into the standard DesignCenter NX environment — no VR hardware or special visualization setup required. Standard NX tools including sectioning, measurement, and clearance validation all work with the imported reality capture data.
What's the difference between this and importing a POD file into NX?
POD files require significant preprocessing, are heavy to load, and slow NX performance on complex environments. This plugin bypasses that entirely — reality capture data is converted to lightweight 3D meshes and streamed directly into NX with no preprocessing pipeline, no lag, and no performance hit.
